Software Applications

EXALT Plus - Excalibur's comprehensive analytical laboratory tool - is a user-friendly software monitor program that is comfortable and intuitive for users.

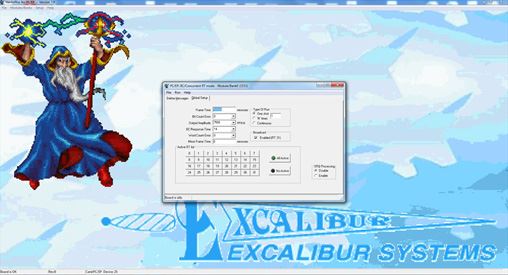

Merlin is a richly featured program for simulating MIL-STD-1553 Bus Controllers, Remote Terminals, and Bus Monitors. Data can be monitored on screen or recorded to file for later viewing. Error injection can be simulated.

Mystic allows engineers to simulate, transmit, or receive ARINC-429 data. Data can be viewed in binary, decimal or hex units, with a choice of standard and Engineering units, which can be customised as required.

For EXC-1553/Px AND DAS-429PCI/Mx Product Families

Excalibur's MIL-STD-1553 Data Reconstructor utility is a tool for recreating a data transmission stream from a Merlin Plus or Exalt log file.

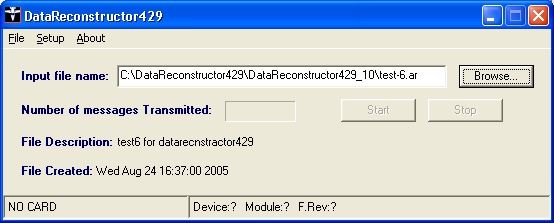

Excalibur's ARINC-429 Data Reconstructor utility is a tool for recreating a data transmission stream from a Mystic log file.

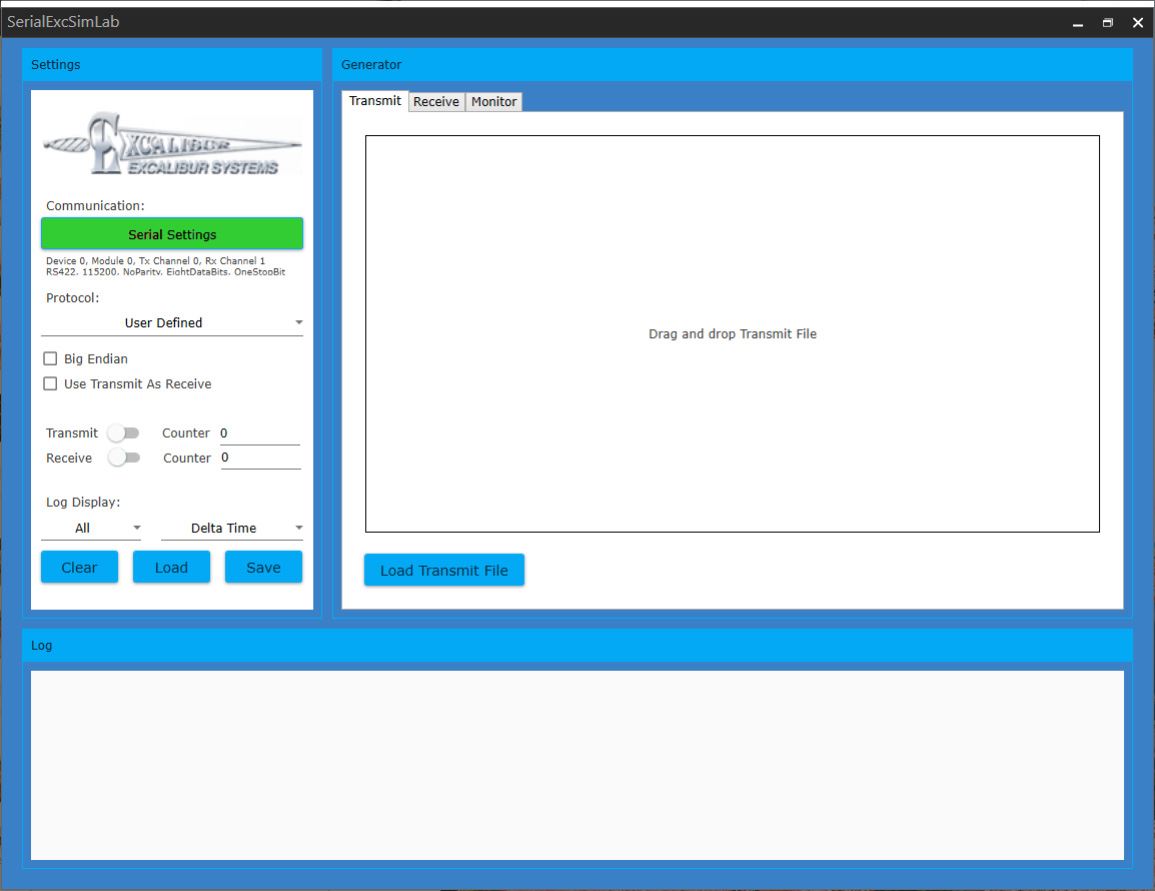

Serial Simulation Laboratory is a Windows based GUI tool that enables the user to send and receive serial packets using the M4K or M8K Serial module without the need for programming.

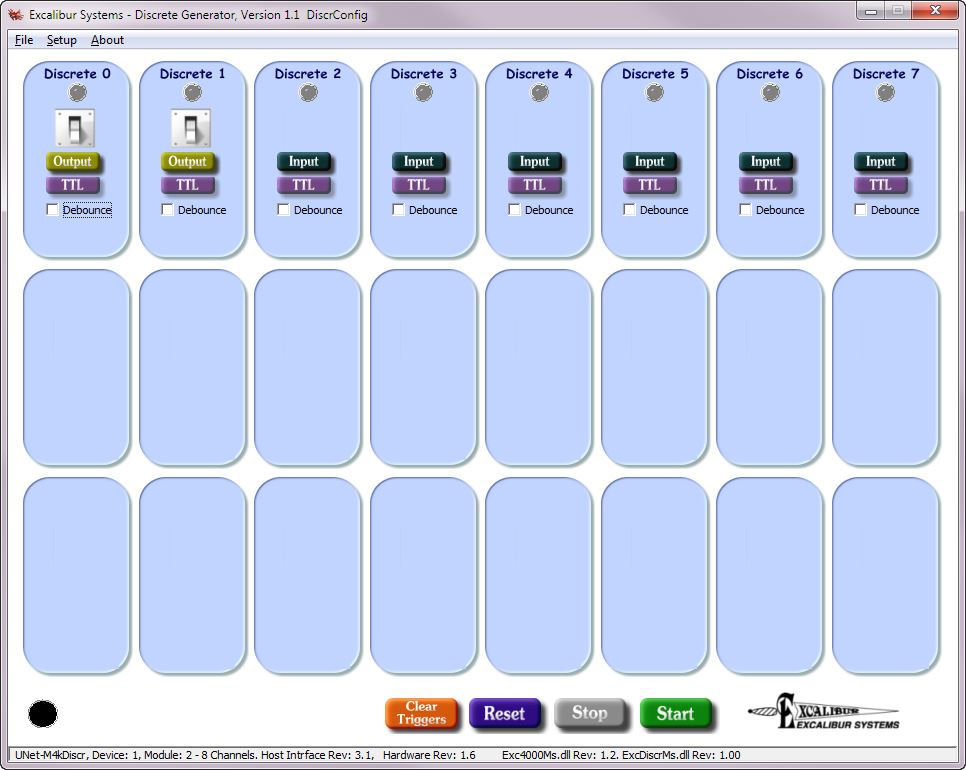

The Discrete Generator is an application program that enables you to configure the Discrete channels on your Discrete module, run the module and view the status of incoming Discretes.

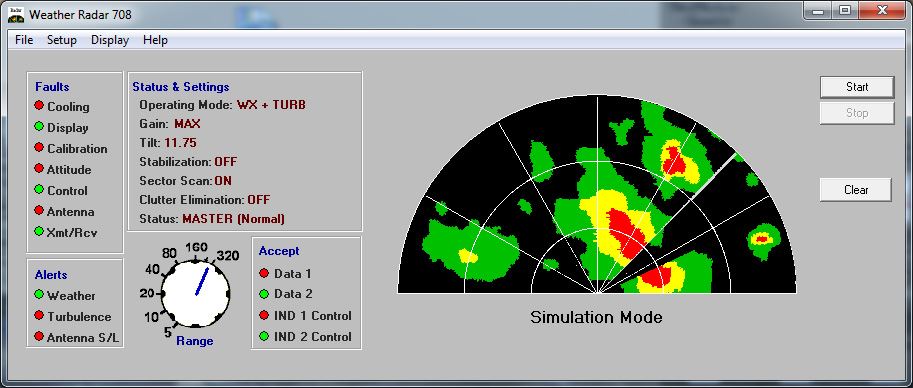

A simple monitoring program for ARINC-708 modules.

ShowHex allows the user to view, search, and even modify the contents of the memory of any installed Excalibur product - enabling user-controlled start, stop and reset of the board on the fly.

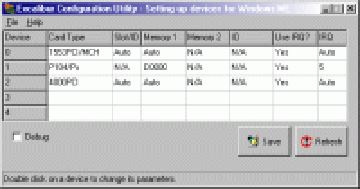

Use ExcConfig to assign a device number and system resources (Memory Addresses, I/O port setup, IRQ Line) to your Excalibur board. This is the method used to inform the Windows operating system that you want to assign resources to an installed board.
