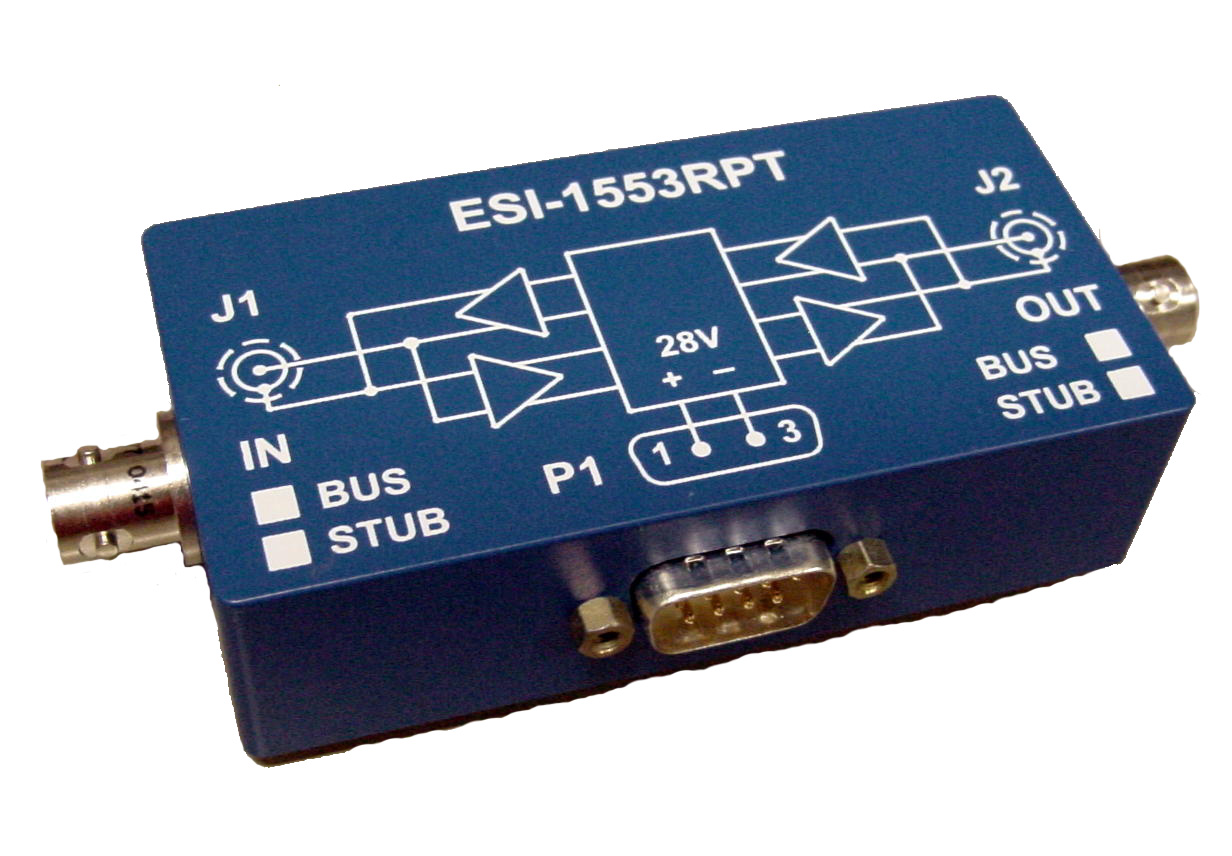

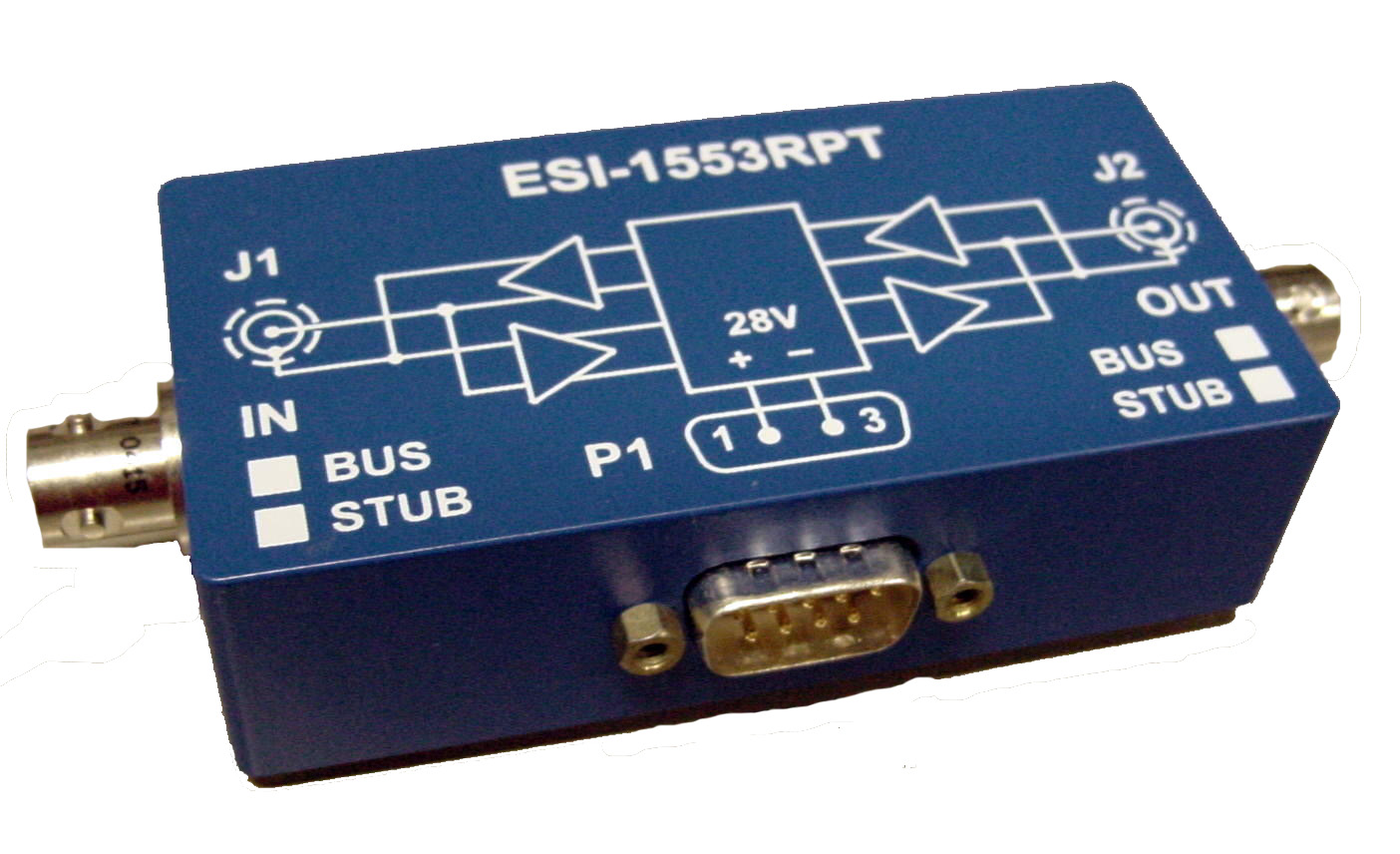

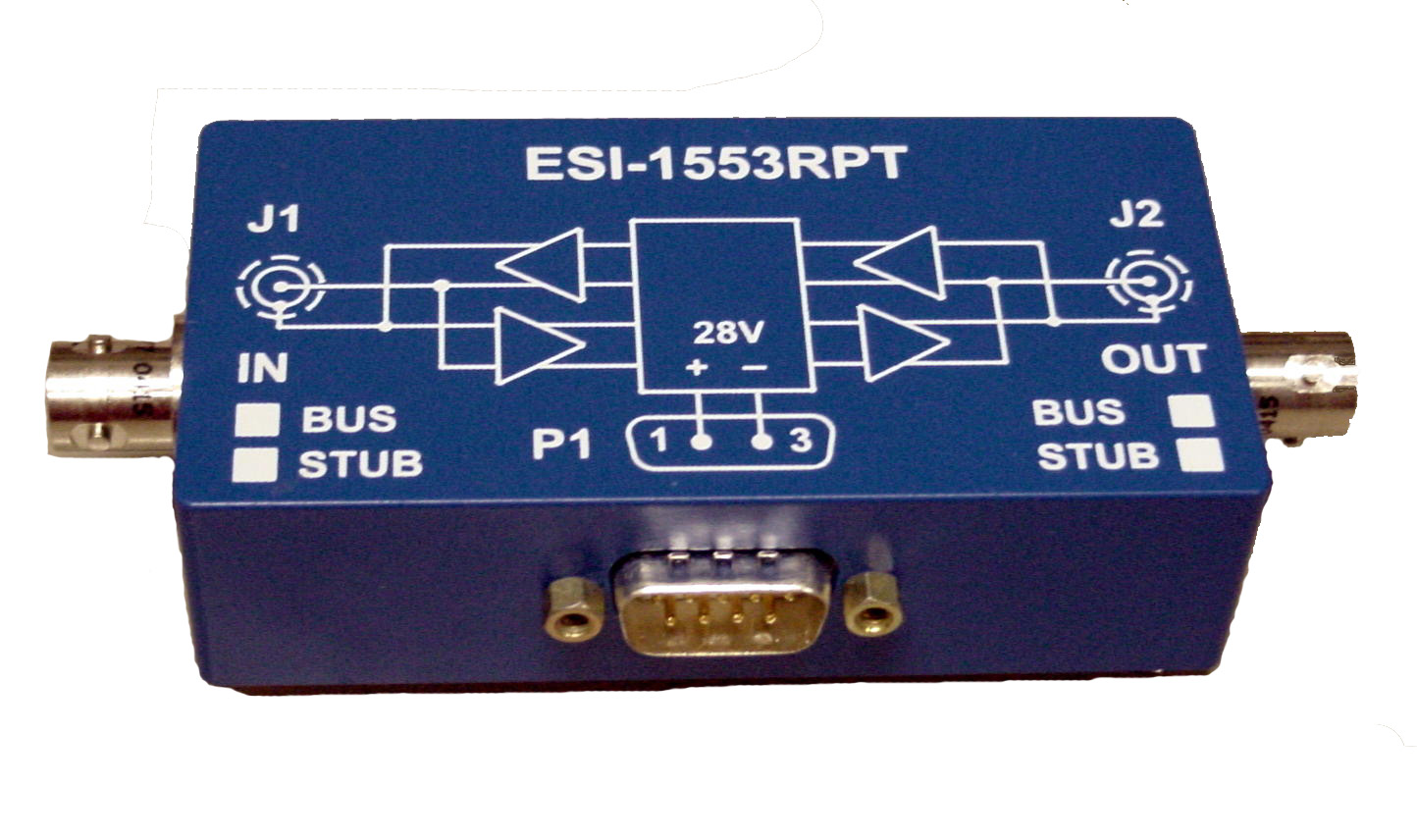

The ESI-1553RPT Repeater box was developed for customers who need to extend the existing length of their bus or provide the capability to utilize long stubs or to connect a number of devices to a single stub. The box was implemented using simple signal detection and switching techniques to minimize the delay through the device. Delay through the unit is in the range of typically 700 nsec. to 900 nsec. maximum. Each connection to the bus is made through the implementation of a bus coupler in various configurations. Standard MIL-STD-1553 transceivers and digital signal processing are utilized to steer and shape the received signals, and retransmit them in the correct direction. Each of the two connections [J1 and J2] is bi-directional. Its type of connection is defined specifically in each configuration as marked on top of the box. A signal received at either connector will enable the signal to flow through towards the other connector.

P1 provides the power connection to the device which is 12-36 VDC (28V nominal).The unit is intended to operate within the temperature range of -40º to 85º C.

MTBF Value for ESI-1553RPT: 693,870 hrs
Prediction Method: MIL-HDBK-217F
Environment: Ground Fixed   Temp. : 25 DegC

Short tutorial explaining how to use a MIL-STD-1553 Repeater:

If you cannot view this tutorial on your browser then click here.

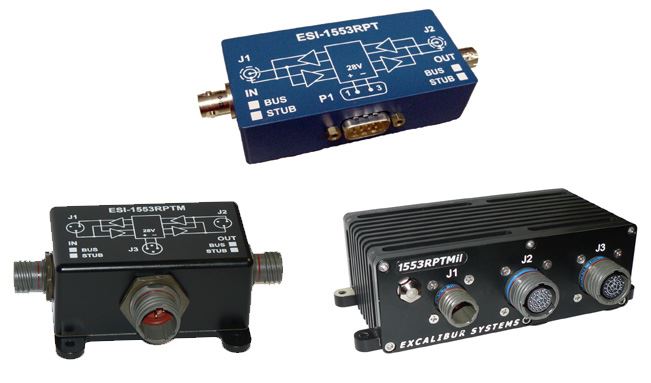

Repeater Products:

Single channel bus repeater
Single channel stub repeater
Single channel stub splitter/extender
Single channel stub to stub repeater is needed for either - Two Stub outputs that need to be connected together or Bus A Stub output that needs to be connected to Bus B Stub output for temporary diagnostic tests.

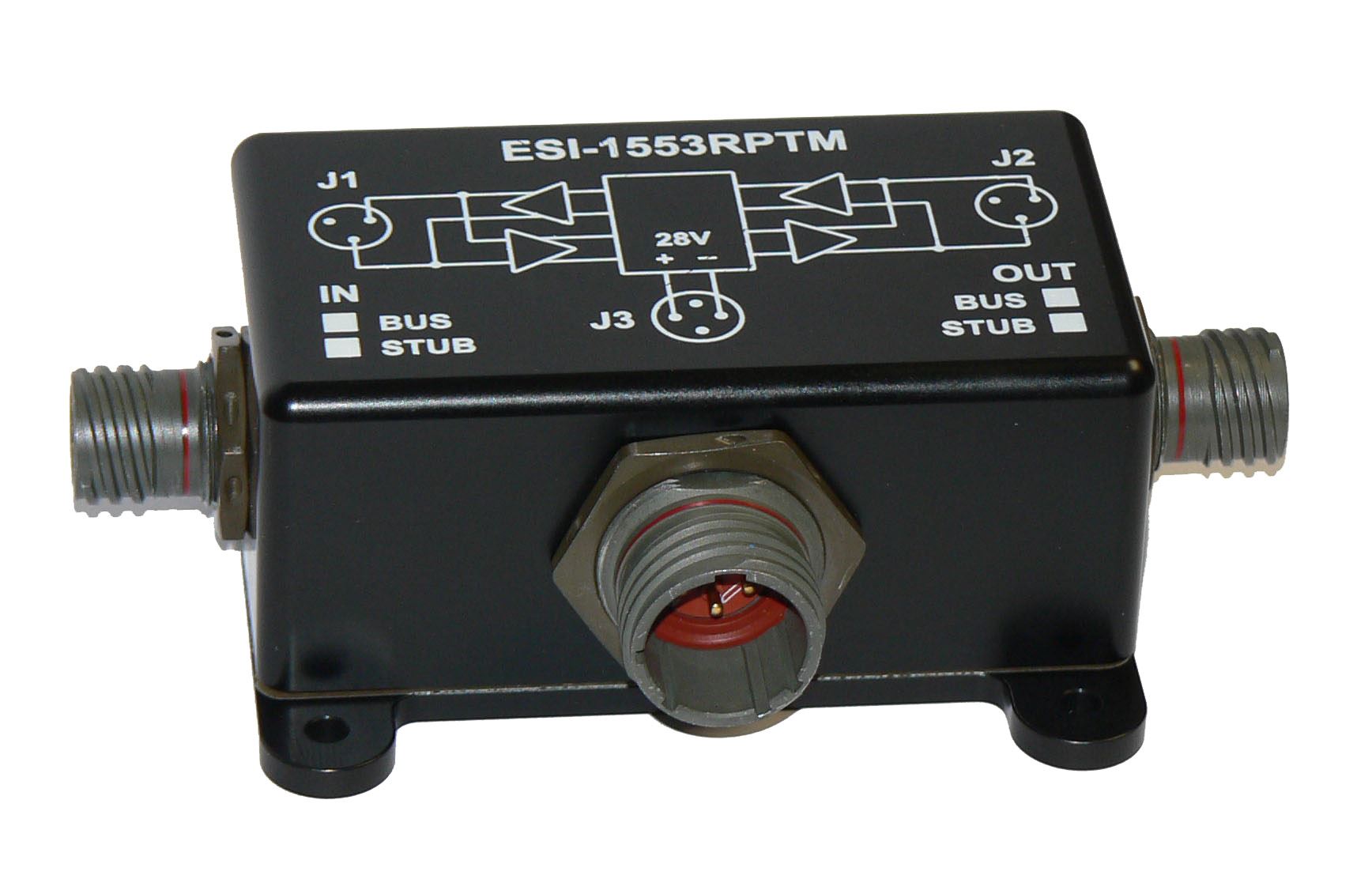

ESI-1553RPTM-x Rugged Repeater
This rugged Repeater has the same selection as our standard version but with MIL-38999 circular connectors. Contact us for more information.

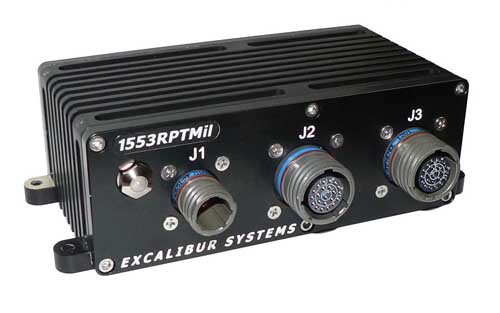

ESI-1553RPTMil-x Airborne Repeater
This rugged Repeater has the same selection as our standard version but with MIL-38999 circular connectors and has been designed for harsh environments. Contact us for more information.
