M4KH009 modules can operate as a Central Computer Complex (CCC) and/or up to sixteen Peripheral Units (PUs) simultaneously, or as a Bus Monitor.  In addition, a Concurrent Bus Monitor enables concurrent monitoring of the bus during CCC and PU simulation.  The module also supports error injection and detection, and all control parameters and data may be updated in real time.

Note: The M4KH009 Module is a "double size" module, and occupies two vertically adjacent sockets in the EXC-4000 carrier Board.

Convert messages from H009 to other communications protocols

USB/Ethernet
USB/Ethernet

The EXC-Unet2 is an advanced Multi Protocol adapter and together with the M8KH009 module gives you a H009 test and simulation adapter for USB or Ethernet equipped computers

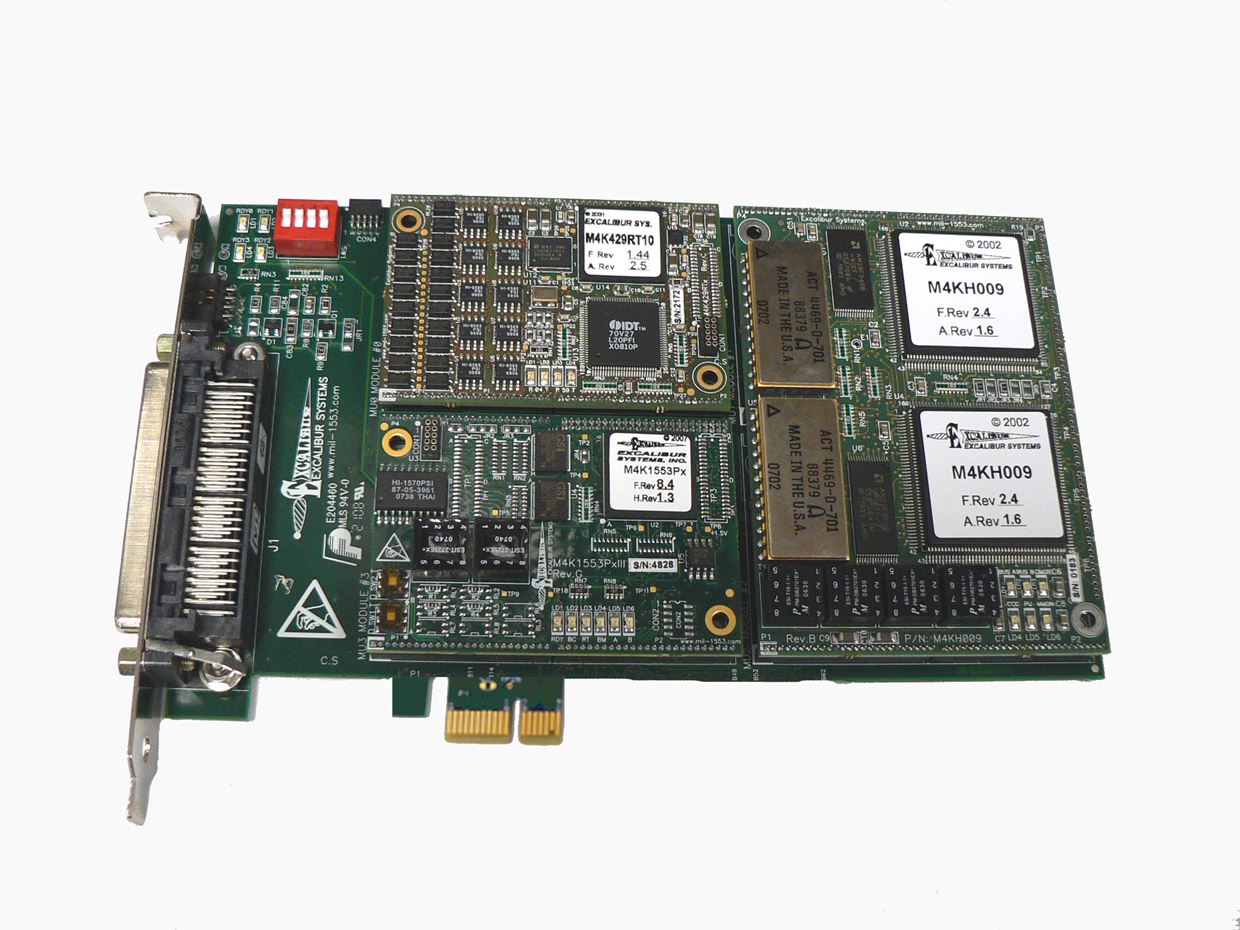

PCI Express
PCI Express

Excalibur's H009 PCI Express interface boards provide a complete solution for developing and testing devices using H009 interfaces.

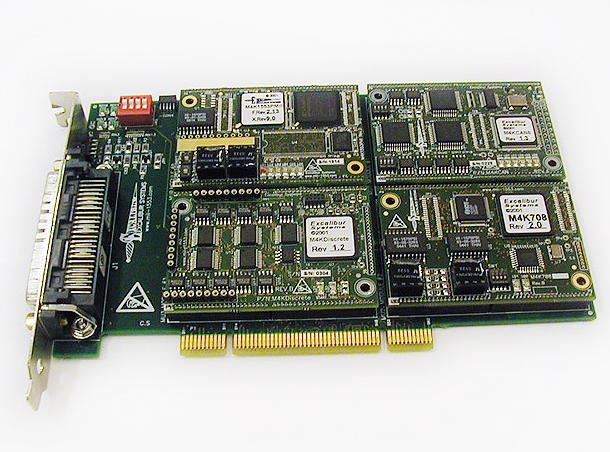

PCI
PCI

The EXC-4000PCI is an advanced Multi Protocol card and together with the M4KH009 module gives you a H009 test and simulation board for the PCI bus.

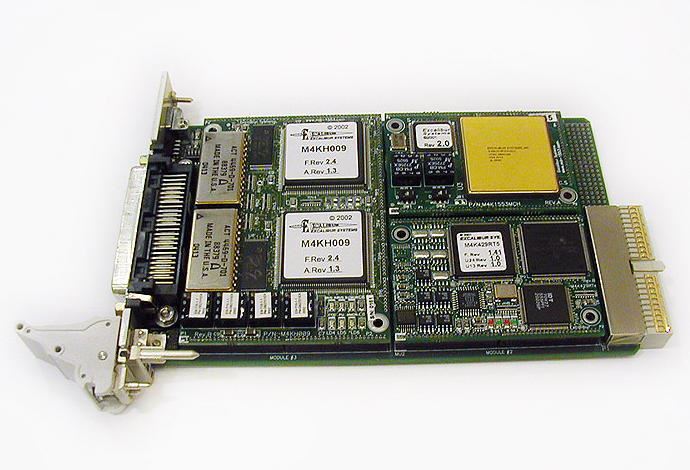

cPCI
cPCI

Excalibur's H009 Compact PCI interface boards provide a complete solution for developing and testing devices using H009 interfaces.
PCI/104-Express
PCI/104-Express

The EXC-8000PCIe104/xx together with the M8KH009 module is an advanced H009 test and simulation board for PCI/104-Express systems

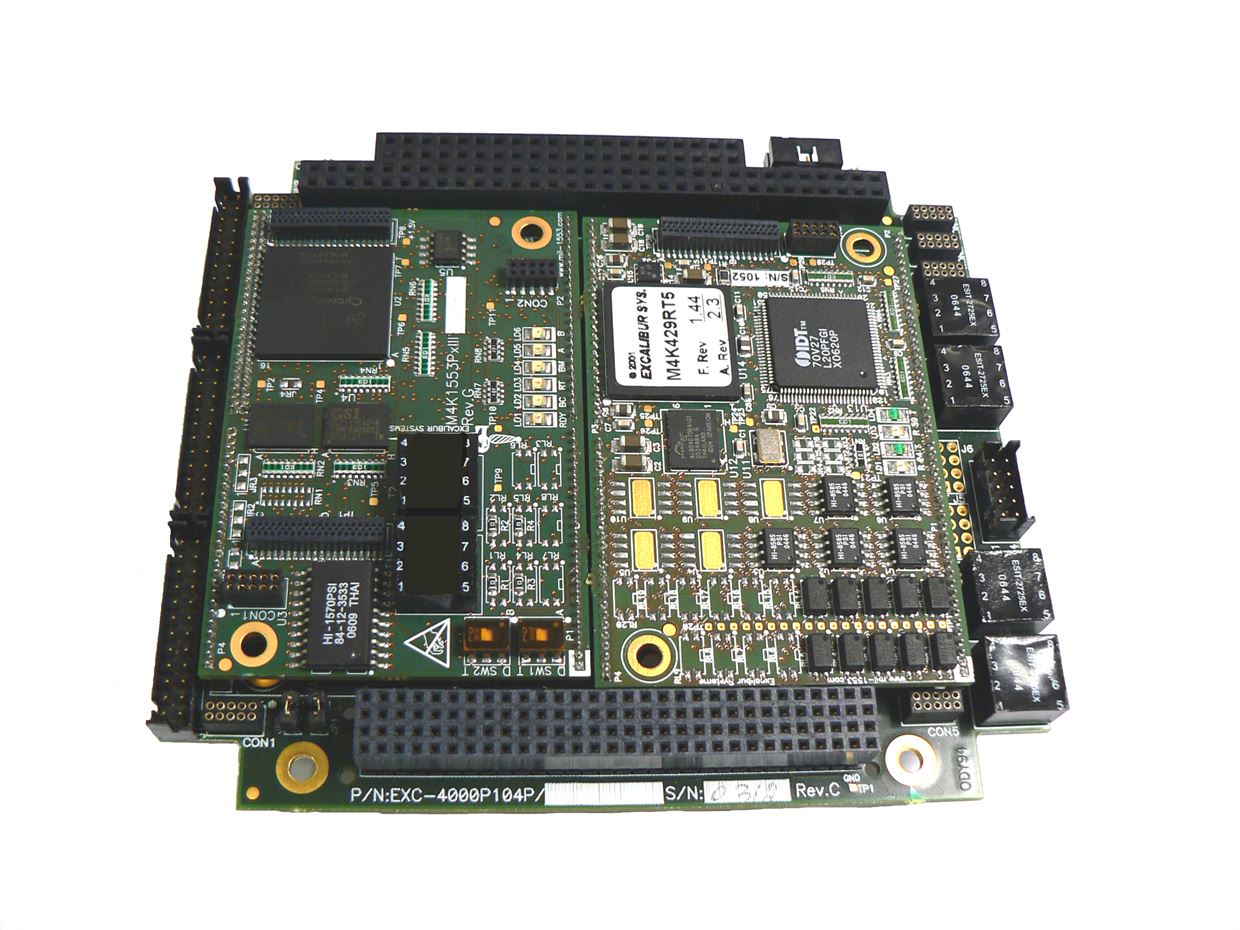

PC/104 Plus
PC/104 Plus

The EXC-4000P104Plus/xx and M4KH009 module is an advanced H009 test and simulation board for PC/104 Plus systems
