Couplers, Repeaters, Bus Switches, Connectors, Cables & more

Accessories for the MIL-STD-1553 data bus are as much of an interface as the communication card. Therefore at Excalibur we provide a full line of accessories for the MIL-STD-1553 data bus that include, Box/Inline Couplers, Repeaters, Bus Switches, break out boxes, connectors, terminators, transformers and custom cable assemblies. Excalibur uses only premier quality parts from known manufacturers, such as, Trompeter. We constantly test our products to meet our higher standards.

If you have a need for an accessory product for your card and it is not listed please contact us to see if it is a product we should be supporting.

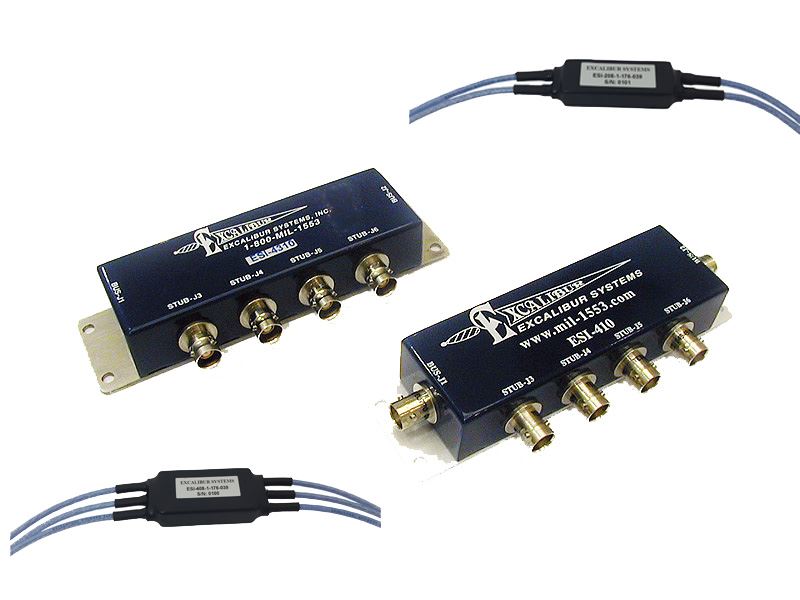

Box Couplers

A variety of MIL-STD-1553 box couplers that inculde one, two three, four, five, and eight stubs in different configurations. Read more >>

In-Line Couplers

A variety of MIL-STD-1553 inline couplers that inculde one, two three, and four stubs in different configurations. Read more >>

Bus Switches

MIL-STD-1553 Bus Switches are devices that enable system architecture to be reconfigured. Read more >>

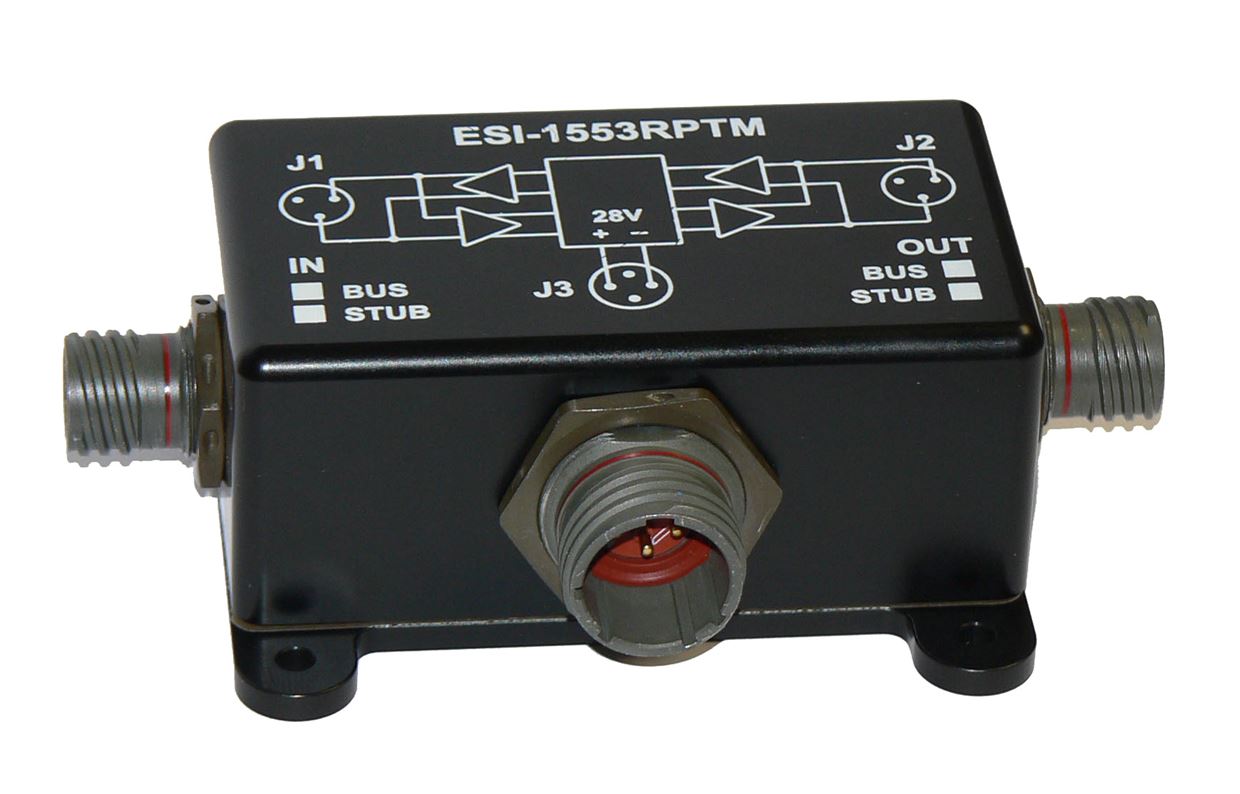

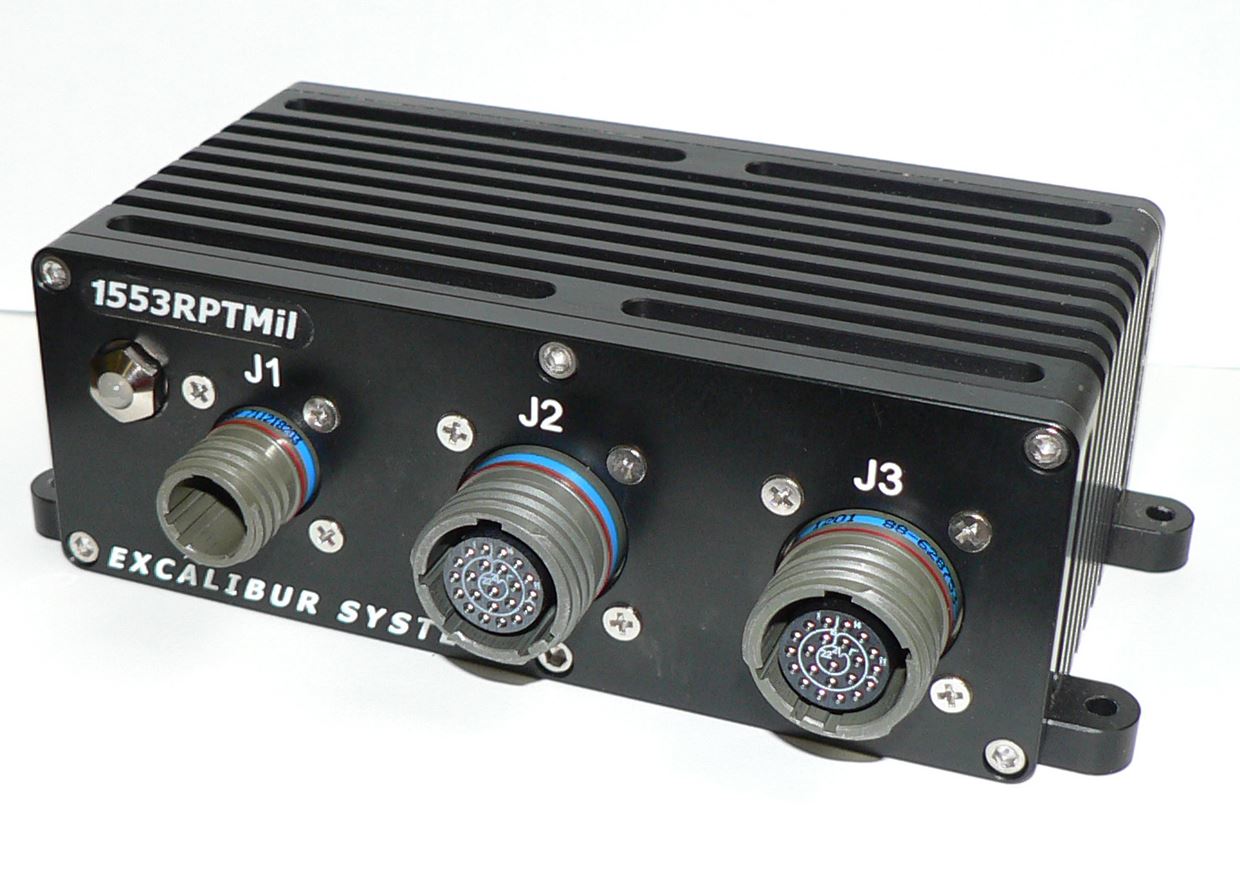

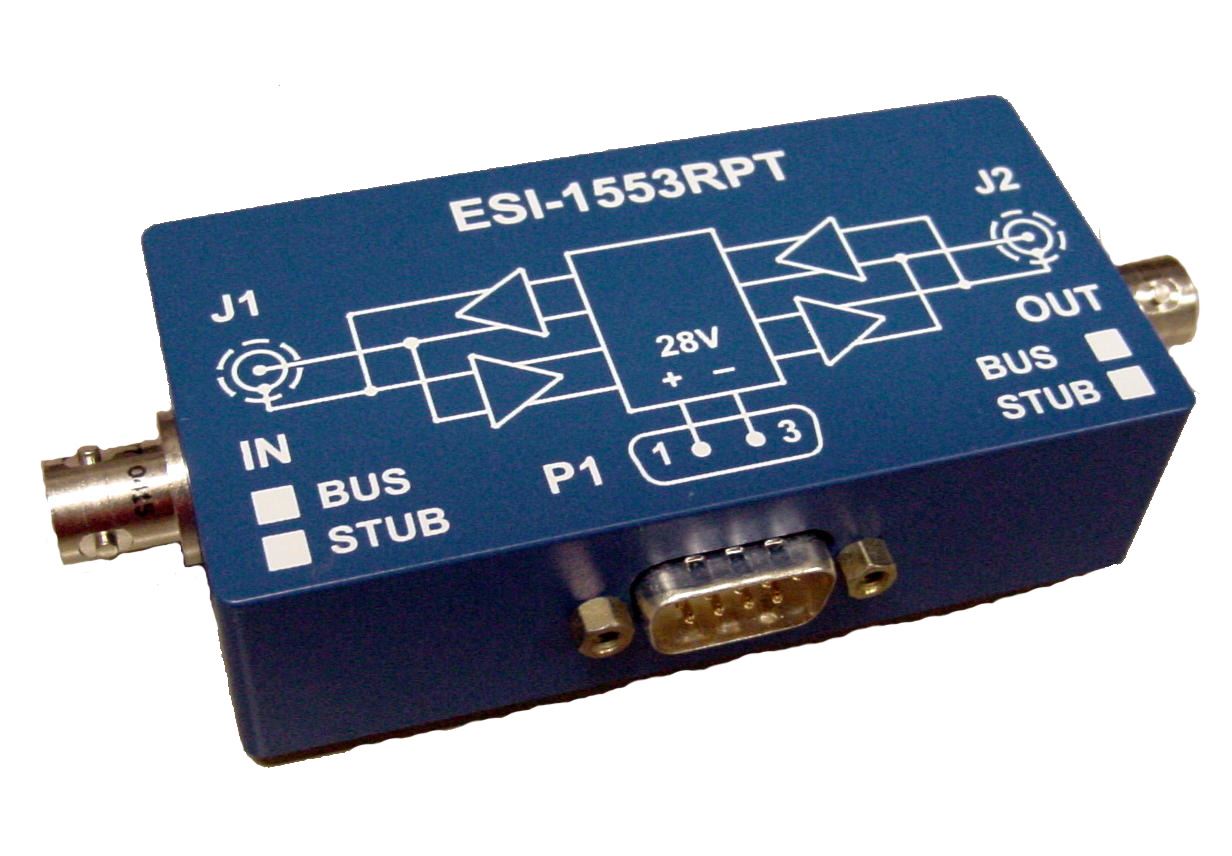

Repeaters

MIL-STD-1553 Bus Repeaters extend the length of your bus or stub and also allows the addition of one or more RT's when only one stub is available on your existing bus. Read more >>

Terminators

Excalibur provides a variety of terminators that includes, 78 ohm, 3K ohm and others. Read more >>

Cable Plugs

Excalibur Cable Plugs are built to last with superior mechanical performance and rugged physical properties Read more >>

Cable Jacks

Excalibur Cable Jacks are built to last with rugged physical properties and extreme reliability Read more >>

Barrel and Tee Connectors

Bulkhead Jacks

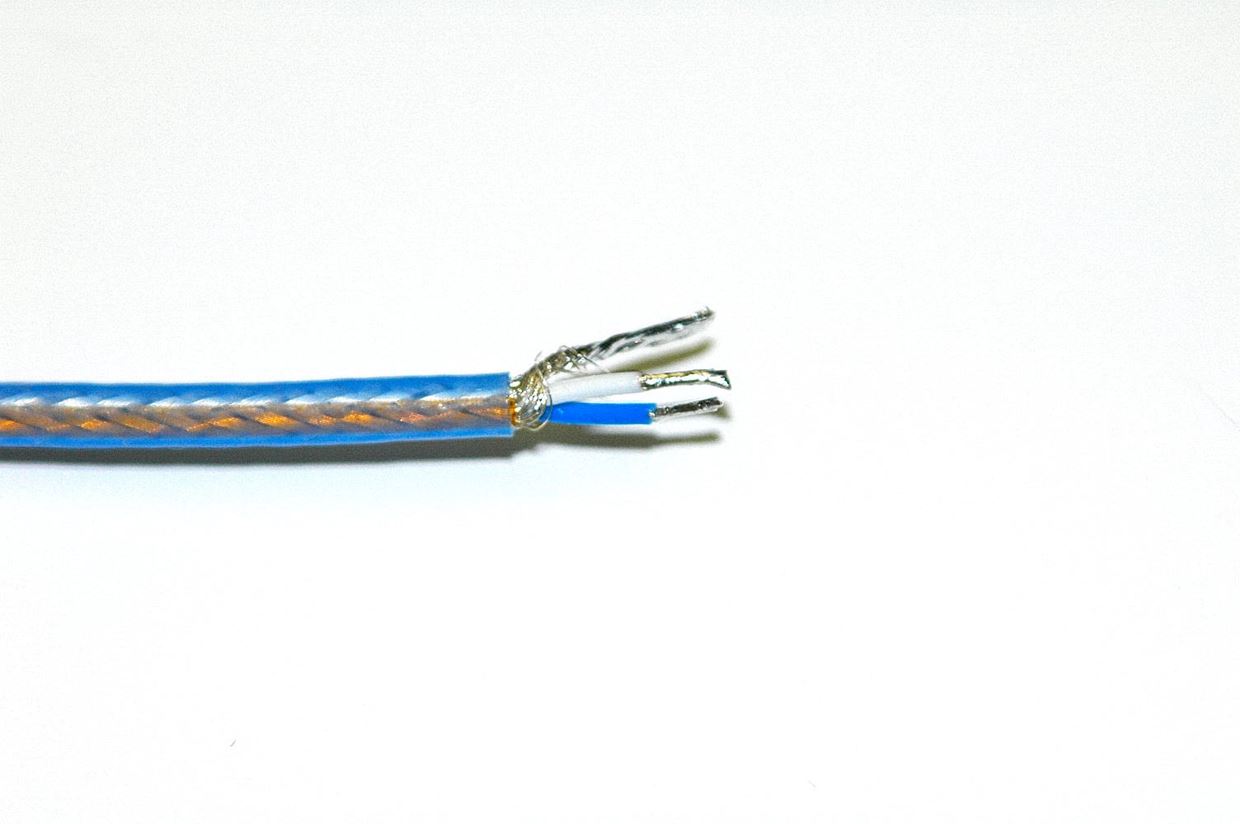

MIL-STD-1553 Cables

Excalibur's MIL-STD-1553 cables offer optimum flexibility, shielding, and performance. M17/176 -00002 and TWAC-78 -1F2 are 200C, Hi-Temp cables for MIL-STD-1553B data bus applications. Read more >>

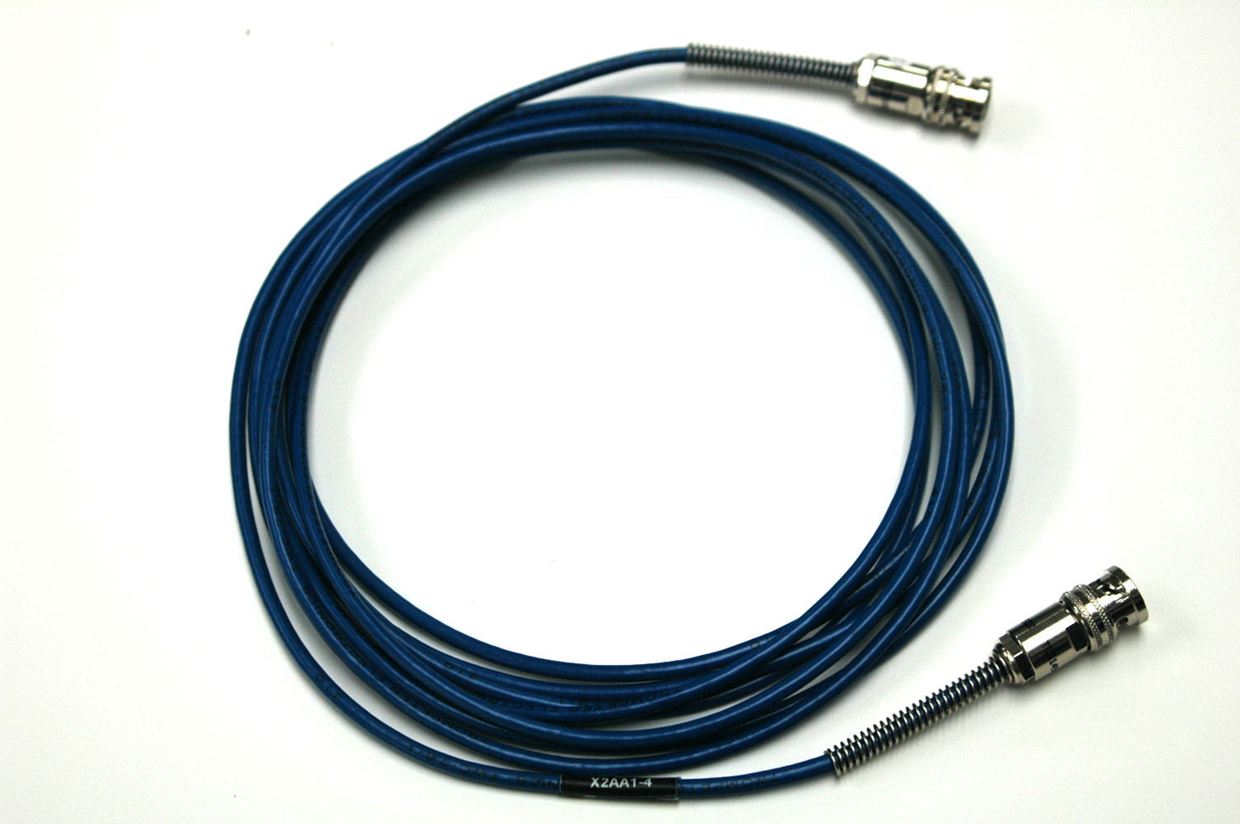

Standard Cable Assembly

Excalibur has a wide variety of "Standard Cable Assemblies" at different cable lengths. Read more >>

Connector Adapter Box

Using MIL-STD-1553 boards with many channels can create a hardship finding the right cable to connect to. With Excalibur's Connector Box finding the needed channel and bus is made easy. Read more >>

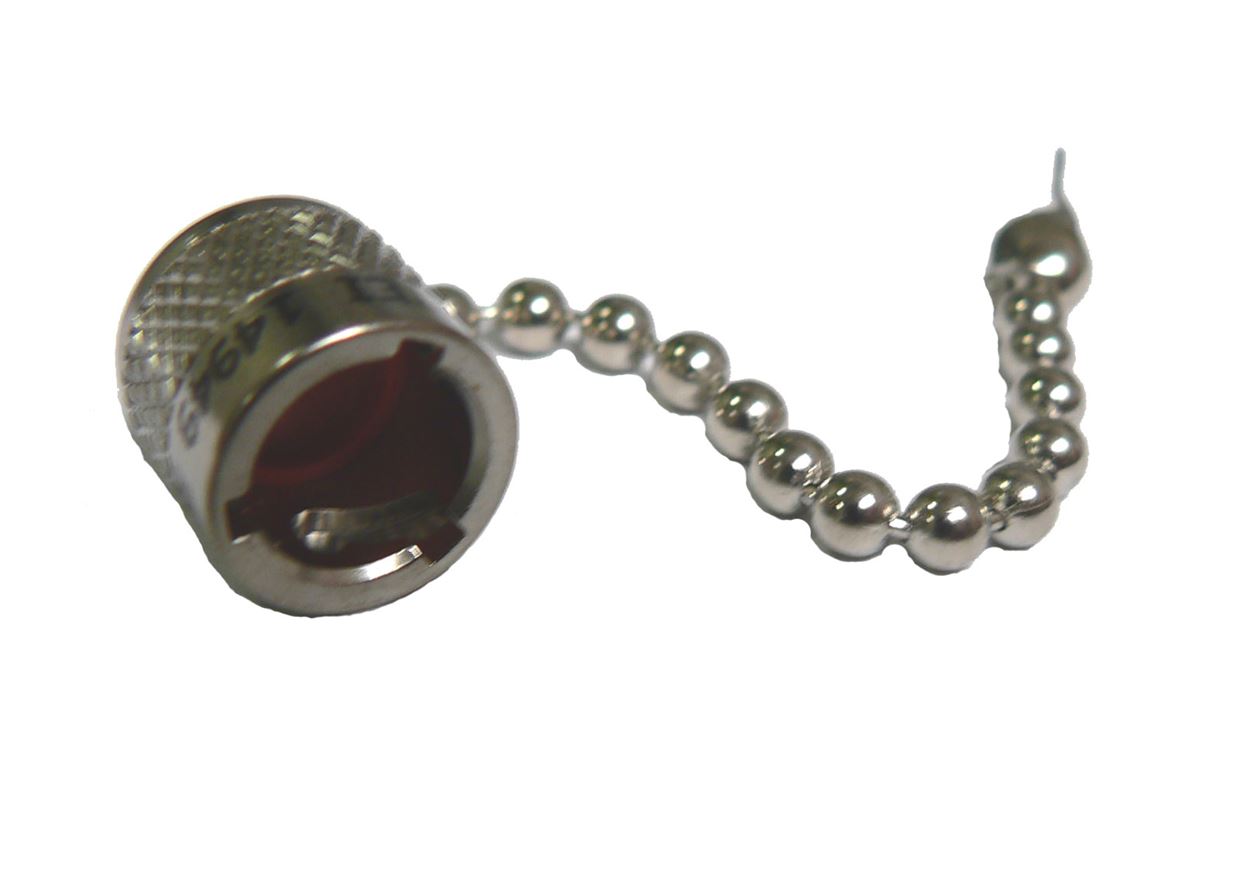

Dust Caps

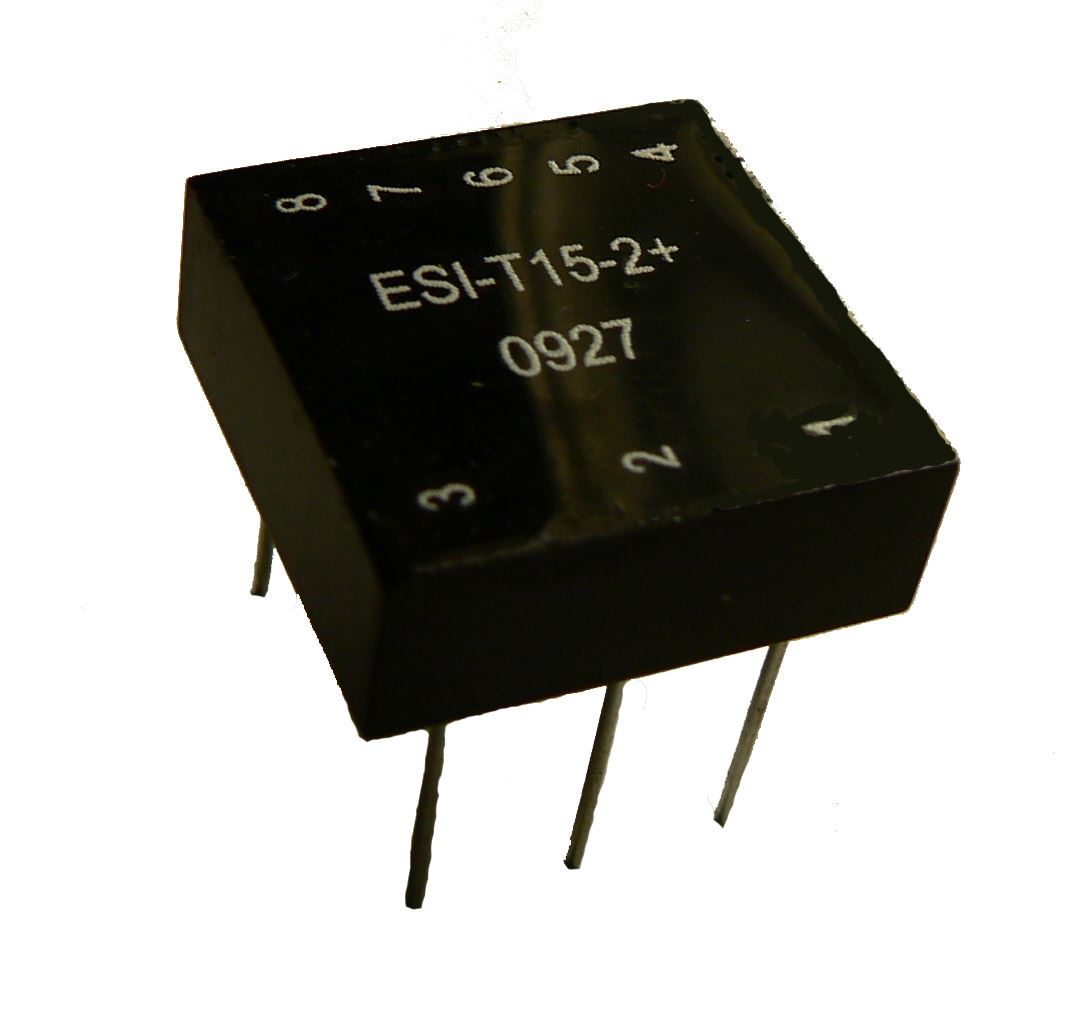

Transformers
